Blood Storage Refrigerators AG-BP
In collaboration with Arrowsmith and Grant, Thermoline brings you a range of BP (Blood Product) units manufactured to the highest standards. These units feature advanced temperature control, robust alarms, and durable construction.
Each unit is Australian-made and includes comprehensive documentation and a 12-month warranty, with a 5-year warranty on the compressor and sealed system.
Overview
Thermoline, in partnership with Arrowsmith and Grant, offers a range of medical refrigeration equipment designed and constructed in accordance with Australian Standards AS3864-2012 Medical refrigeration equipment – For the storage of blood and blood products, Part 1: Manufacturing requirements and AS ISO13485-2003 Quality management systems for medical devices.
Our range of BP (Blood Product) units are manufactured to the highest quality and include the following features:
- Operating internal temperature between 2.5°C and 5.5°C at all times
- Visual digital display of current temperature
- A&G LCD Smart Screen
- A&G SmartCloud logging as per AS3864.2 including:
- High temperature alarm (>5.5°C)
- Low temperature alarm (<2.5°C)
- Door open alarm (after 30 seconds)
- Power failure alarm
- Battery backup integrity check
- Alarm mute option, re-alarming in <20 minutes
- 304 stainless steel interior with stainless steel chemical resistant exterior
- Nylon non-marking castors with lock-in-place brakes
- Lockable exterior door/s with double glazed glass
- Internal self-closing Perspex doors
- Food grade poly-coated shelving
- Food grade vacuumed formed blood holding racks for each shelf
- Internal LED lighting with switch on front panel
- External independent temperature cable/probe port
- Super-flow cooling system
- Automatic defrost
- Australian Made
- All units include a user-friendly manual and documentation on performance as detailed in AS3864-2012 Medical refrigeration equipment – For the storage of blood and blood products, Part 1: Manufacturing requirements.
All units have a 12-month warranty on all parts and labour and a 5-year warranty on the compressor and sealed system (during normal business hours only).
Arrowsmith & Grant's new Smart Screen has been designed to pair with our innovative cloud logging system, A&G Smart Cloud. Five years of access to A&G Smart Cloud is included in your unit pricing.
Arrowsmith & Grant are also an accredited calibration provider compliant with ISO/IEC 17025, meaning that we are certified to provide temperature monitoring and alarm system calibration, alarm reactivation testing, and spatial distribution checks in accordance with AS 3864.2, which must be complied with for NATA accreditation. After testing, full documentation and certificates are provided for each unit tested.
On-site calibrations and spatial distribution checks in accordance with AS3864.2 are offered as an additional extra cost for each new Arrowsmith & Grant blood fridge or plasma freezer supplied. We are also able to provide this service to all makes and models of blood fridges and plasma freezers, either as a one-off service or as part of a regular 6-monthly maintenance schedule in accordance with AS3864.2012.
Arrowsmith & Grant Blood Refrigerators are Therapeutic Goods Administration (TGA) approved and have been included on the Australian Register of Therapeutic Goods (ARTG) under our client identification of 169409 and 169410.
All of the blood fridges shown below utilise components that are readily available in Australia from local suppliers and distributors, and Thermoline, in partnership with Arrowsmith & Grant, offers full support as well as regular maintenance and service through our own Australia-wide support and distribution network.
| Model | Volume | Holds |

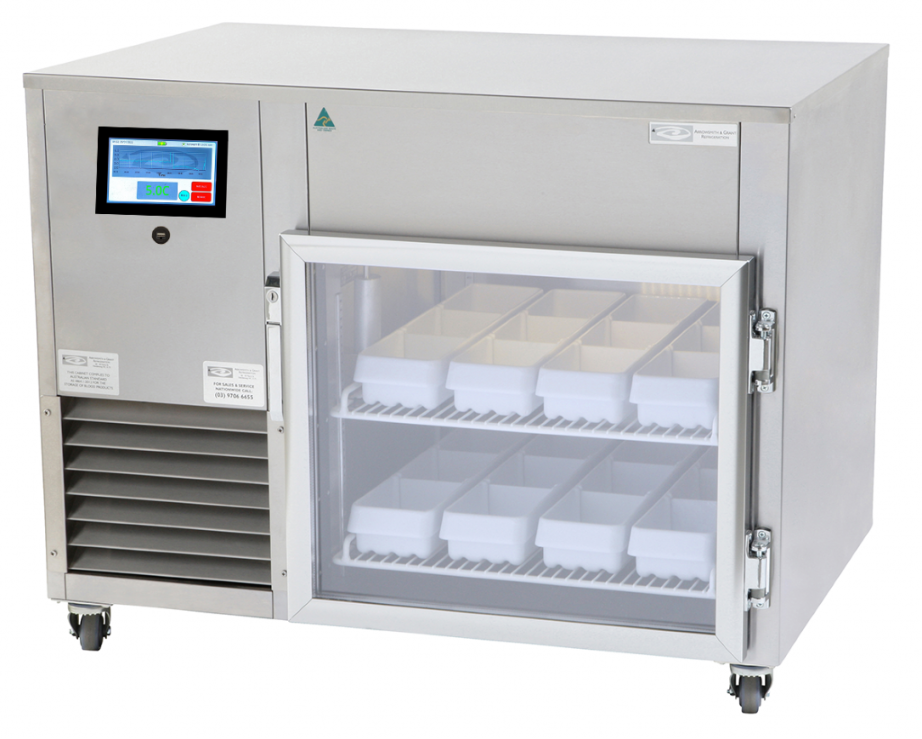

| AG56BPUB | 150L | 208 x 250mL Blood Bags 104 x 450mL Blood Bags |

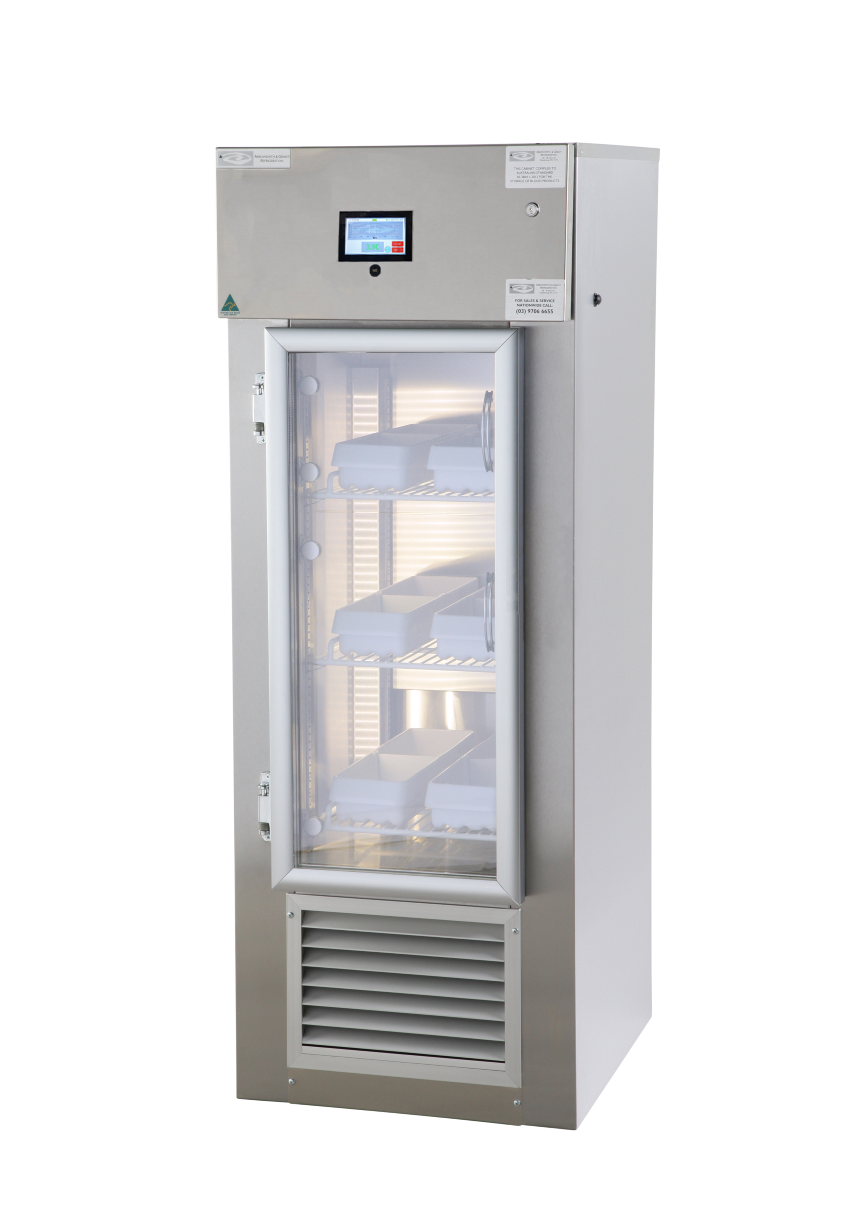

| AG36BP | 200L | 120 x 250mL Blood Bags 60 x 450mL Blood Bags |
| AG63BP | 325L | 312 x 250mL Blood Bags 156 x 450mL Blood Bags |

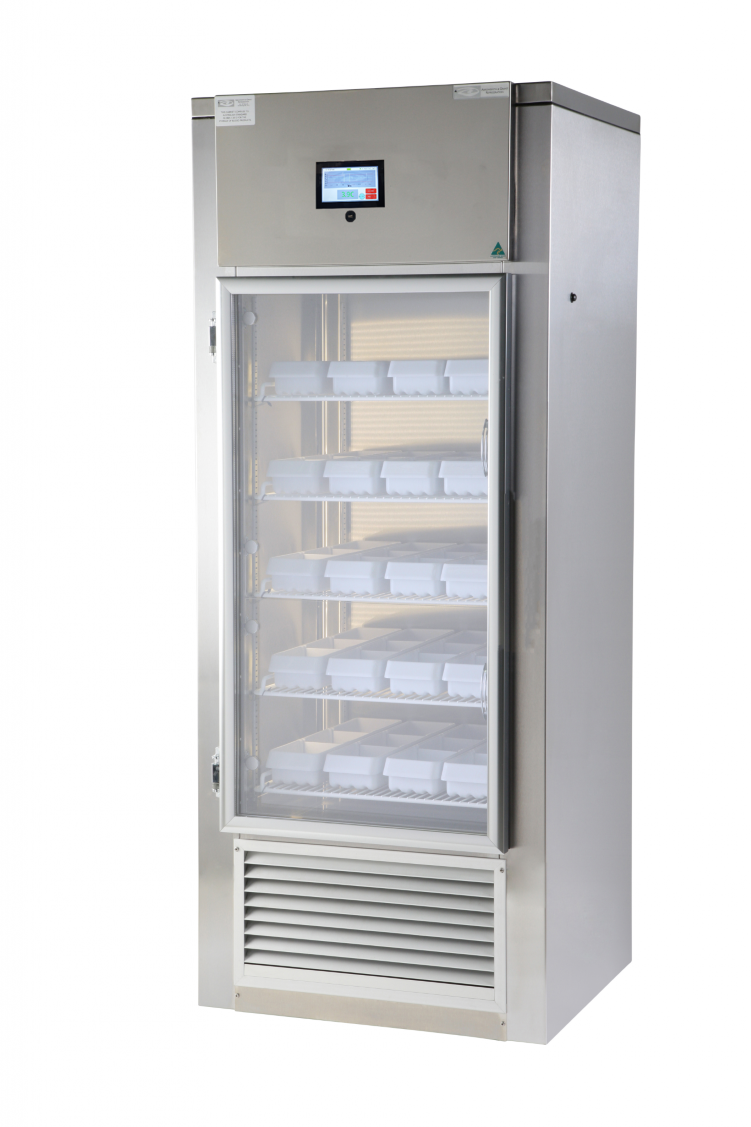

| AG112BP | 500L | 520 x 250mL Blood Bags 240 x 450mL Blood Bags |
| AG224BP | 1050L | 1040 x 250mL Blood Bags 520 x 450mL Blood Bags |

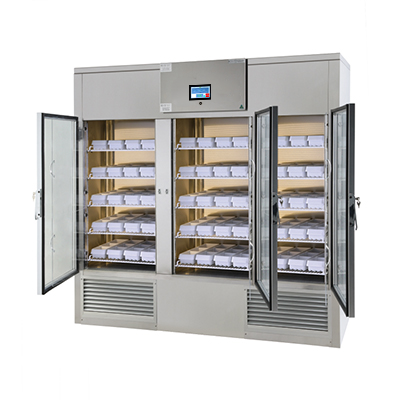

| AG308BP | 1300L | 1352 x 250mL Blood Bags 672 x 450mL Blood Bags |
Technical Data
-
BrandArrowsmith and Grant
-
Capacity36 Bag to 308 Bag
-
Models AvailableSix
-
Temperature Range4°C
-
Complies WithAS3864-2012 / ISO13485-2003
Downloads
Support & FAQs
At Thermoline, we strive to supply helpful customer support to ensure that you get the most out of our products. We are committed to providing whatever support our customers need, wherever they are in the world. If you can't find your solution in the below FAQs or Knowledge Base, please contact our friendly support team.
- Can blood be stored in a fridge?
Yes, blood can be stored in a refrigerator, but it must be in a specialized blood bank refrigerator. These refrigerators are designed to maintain a constant temperature of 4°C, which is critical for preserving the viability and safety of blood and blood products. Unlike regular fridges, blood bank refrigerators have precise temperature controls, alarms, and monitoring systems to ensure the blood remains at the correct temperature. This is crucial for preventing bacterial growth and ensuring that the blood remains suitable for transfusions.
- What is special about a blood bank refrigerator?
- A blood bank refrigerator is specially designed to store blood and blood products safely. What sets it apart from standard refrigerators is its precise temperature control, typically at 4°C, which is crucial for maintaining the integrity of blood. These refrigerators come equipped with alarms, temperature monitoring systems, and uniform cooling to prevent temperature fluctuations. Additionally, they often include features like chart recorders, fan-forced air circulation, and lockable doors for added security, ensuring that the blood stored is safe and ready for use.
- What is the temperature of blood storage in a refrigerator?
- The optimal temperature for blood storage in a refrigerator is between 4°C. This temperature range is critical for preserving the quality and safety of blood and blood products. Maintaining this specific temperature ensures that the blood remains viable for transfusions while minimizing the risk of bacterial growth. Blood bank refrigerators are designed to consistently maintain this temperature, with built-in alarms and monitoring systems to ensure compliance with stringent safety standards.
- What is the difference between a blood bank refrigerator and a normal refrigerator?
- The key difference between a blood bank refrigerator and a normal refrigerator lies in its design and functionality. Blood bank refrigerators are engineered to maintain a strict temperature range of 4°C, which is essential for the safe storage of blood and blood products. They feature advanced temperature control systems, alarms, and continuous monitoring to prevent any fluctuations that could compromise the blood's viability. In contrast, normal refrigerators do not have these precise controls and may experience temperature variations, making them unsuitable for storing blood. Additionally, blood bank refrigerators often include security features such as lockable doors and access controls, ensuring that only authorised personnel can handle the stored blood.
