Fresh Frozen Plasma (FFP) Freezers AG-FFP
In collaboration with Arrowsmith and Grant, Thermoline brings you a range of FFP (Fresh Frozen Plasma) units manufactured to the highest standards. These units are designed for optimal plasma storage with advanced temperature control, robust alarms, and durable construction.
Each unit is Australian-made and includes comprehensive documentation and a 12-month warranty, with a 5-year warranty on the compressor and sealed system.
Overview
Thermoline, in partnership with Arrowsmith and Grant, offers a range of medical refrigeration equipment designed and constructed in accordance with Australian Standards AS3864-2012 Medical refrigeration equipment – For the storage of blood and blood products, Part 1: Manufacturing requirements and AS ISO13485-2003 Quality management systems for medical devices.
Our range of FFP (Fresh Frozen Plasma) units are manufactured to the highest quality and include the following features:
- Operating internal temperature of -35°C, no higher than -30°C under heavy usage or defrost
- Visual digital display of current temperature
- A&G LCD Smart Screen
- A&G SmartCloud logging as per AS3684.2
- High temperature alarm (>-27°C)
- Door open alarm (after 30 seconds)
- Power failure alarm
- Battery backup integrity check
- Alarm mute option, re-alarming in <20 minutes
- 304 stainless steel interior with stainless steel chemical resistant exterior
- Nylon non-marking castors with lock-in-place brakes
- Food grade poly-coated plasma baskets, chest freezer has lift out baskets
- External independent temperature cable/probe port
- Fan-forced cooling evaporator
- Automatic reverse cycle defrost (chest freezer requires manual defrost)
- Chest freezer has a lift-up lid with gas struts to support and hold the lid in position for easy access
- Australian Made
- All units include a user-friendly manual and documentation on performance as detailed in AS3864-2012 Medical refrigeration equipment – For the storage of blood and blood products, Part 1: Manufacturing requirements.
All units have a 12-month warranty on all parts and labour and a 5-year warranty on the compressor and sealed system (during normal business hours only).
Arrowsmith & Grant's new Smart Screen has been designed to pair with our innovative cloud logging system, A&G Smart Cloud. Five years of access to A&G Smart Cloud is included in your unit pricing.
Arrowsmith & Grant are also an accredited calibration provider compliant with ISO/IEC 17025, meaning that we are certified to provide temperature monitoring and alarm system calibration, alarm reactivation testing, and spatial distribution checks in accordance with AS 3864.2, which is a NATA requirement. After testing, full documentation and certificates are provided for each unit tested.
On-site calibrations and spatial distribution checks in accordance with AS 3864.2 are offered as an additional extra cost for each new Arrowsmith & Grant blood fridge or plasma freezer supplied. We are also able to provide this service to all makes and models of blood fridges and plasma freezers, either as a one-off service or as part of a regular 6-monthly maintenance schedule in accordance with AS3864.2012.
Arrowsmith & Grant Blood Refrigerators are Therapeutic Goods Administration (TGA) approved and have been included on the Australian Register of Therapeutic Goods (ARTG) under our client identification of 169409 and 169410.
All of the plasma freezers shown utilise components that are readily available in Australia from local suppliers and distributors, and Thermoline, in partnership with Arrowsmith & Grant, offers full support as well as regular maintenance and service through our own Australia-wide support and distribution network.
| Model | Volume | Class | Holds |

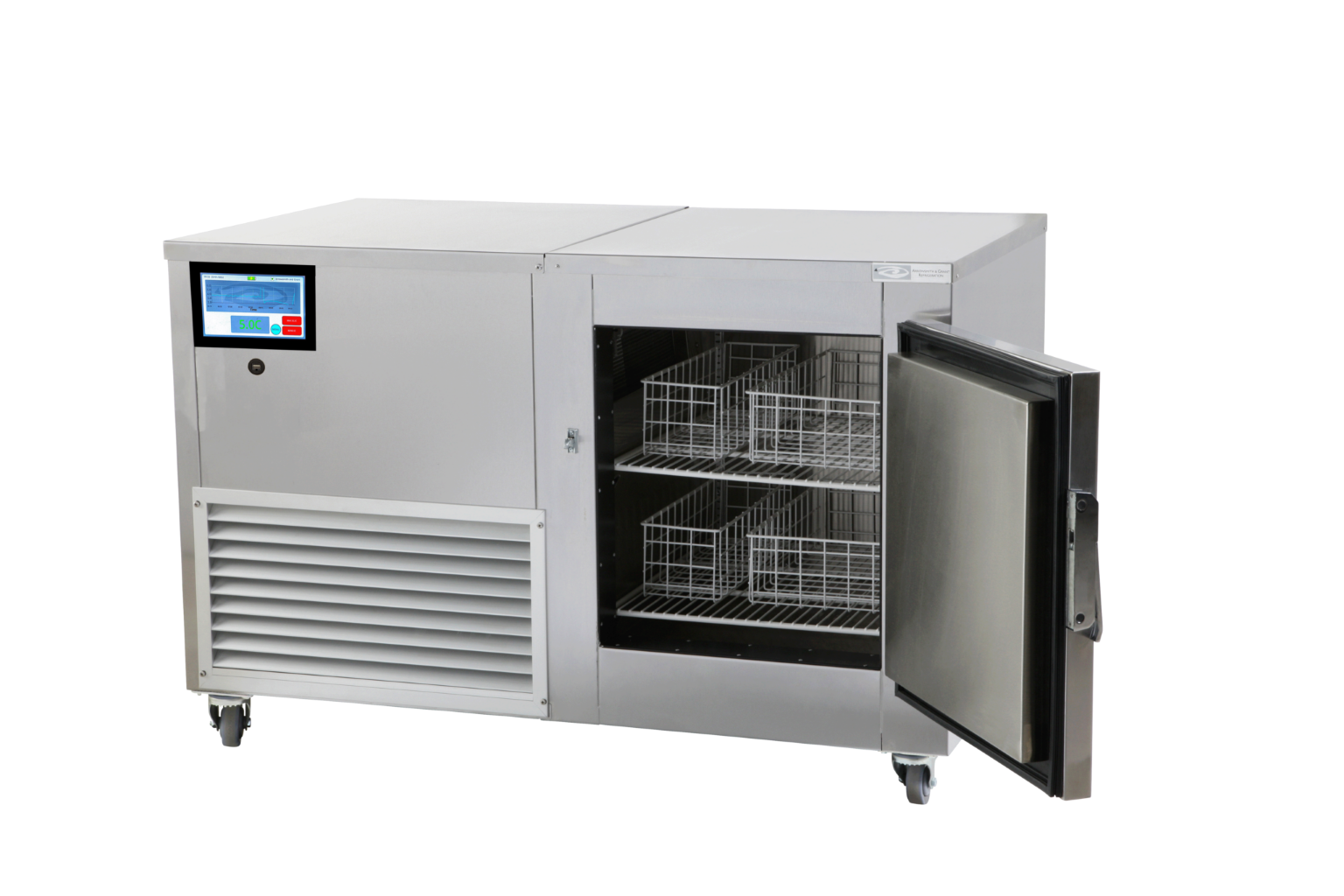

| AG44FFPUB | 150L | Under Bench Single Door | 44 x 350mL Plasma Packs |

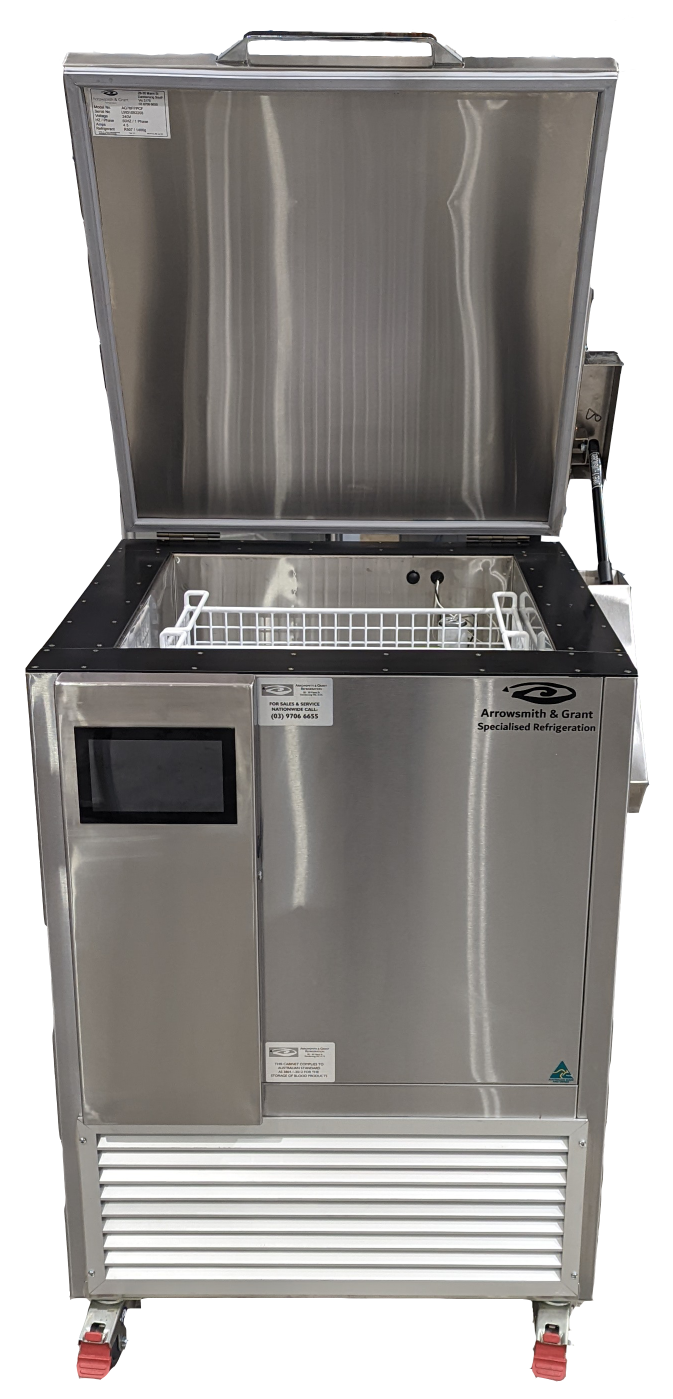

| AG76FFPCF | 150L | Chest Type | 76 x 350mL Plasma Packs |
| AG136FFPUR | 320L | Upright Single Door | 136 x 350mL Plasma Packs |
Technical Data
-
BrandArrowsmith and Grant
-
Capacity44 Bag to 136 Bag
-
Models AvailableThree
-
Temperature Range-35°C
-
Complies WithAS3864-2012 / ISO13485-2003
Downloads
Support & FAQs
At Thermoline, we strive to supply helpful customer support to ensure that you get the most out of our products. We are committed to providing whatever support our customers need, wherever they are in the world. If you can't find your solution in the below FAQs or Knowledge Base, please contact our friendly support team.
- What temperature is FFP frozen at?
- Fresh Frozen Plasma (FFP) is frozen at a temperature of -30°C or lower. This ultra-low temperature is essential to preserve the plasma's clotting factors and other critical proteins, ensuring it remains viable for transfusion or other medical purposes. Plasma must be frozen within a specific time frame after donation to maintain its effectiveness, and storing it at -30°C or lower is crucial for long-term preservation.
- How should FFP be stored?
- FFP should be stored in a plasma freezer that maintains a consistent temperature of -30°C or lower. It is important to store FFP in a way that prevents temperature fluctuations, as this could compromise the plasma's quality. Plasma freezers designed specifically for this purpose are equipped with alarms, monitoring systems, and even chart recorders to ensure the plasma remains within the required temperature range. Proper storage conditions are vital to preserve the clotting factors and proteins in the plasma, making it safe for future transfusions.
- What is the difference between FFP and frozen plasma?
- The primary difference between Fresh Frozen Plasma (FFP) and frozen plasma lies in the timing of the freezing process. FFP is plasma that has been separated from whole blood and frozen within eight hours of collection to preserve clotting factors and other proteins. In contrast, frozen plasma refers to plasma that may have been frozen at a later time, usually up to 24 hours after collection, which may result in a slight reduction in some of the clotting factors. Both are used in transfusions, but FFP is typically preferred when the preservation of all clotting factors is crucial.
- What is the purpose of a plasma freezer?
- The purpose of a plasma freezer is to store plasma at a consistent temperature of -30°C or lower to preserve its viability for medical use. Plasma freezers are specially designed to maintain these ultra-low temperatures with minimal fluctuations, ensuring that the plasma's clotting factors and proteins remain intact. These freezers are equipped with advanced monitoring systems, alarms, and often have chart recorders to document temperature stability. Plasma freezers are essential in blood banks and hospitals, where maintaining the quality of stored plasma is critical for patient care.
